Jenereta ya aina moja ya baraza la mawaziri
Kuanzisha jenereta ya aina moja ya baraza la mawaziri la aina moja-suluhisho bora kwa marekebisho ya sababu ya nguvu na utulivu wa voltage katika shughuli zako. Imetengenezwa nchini China, SVG hii imeundwa kutoa usimamizi wa nguvu wa kuaminika, wa utendaji wa hali ya juu kwa matumizi anuwai ya viwanda. Ikiwa unatafuta kuongeza ufanisi wa nishati na hakikisha usambazaji wa umeme thabiti, omba nukuu leo!

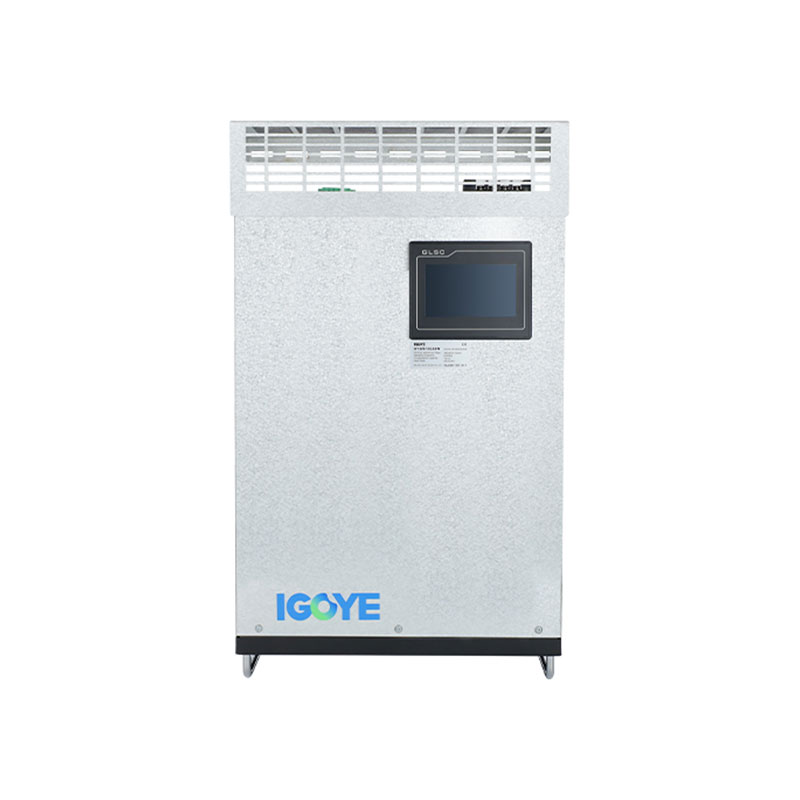

The Single-Phase Cabinet-Type Static Var Generator (SVG) offers dynamic reactive power compensation for single-phase 220V electrical systems. Using DSP+CPLD digital control and advanced reactive power detection algorithms, it provides precise and rapid compensation with a full response time of less than 10ms. The cabinet-type design ensures robust protection and convenient installation for various industrial environments. Available in a range of capacities from 5kvar to 55kvar, this SVG caters to diverse single-phase application needs.
Model description:
| GY | SVG | 0.22 | 50K | / | 2L | C |
| Enterprise code | Static var generator |
Voltage level 0.22:220V |
Rated Capacity (kvar) 5/8/19/27/41/55kvar | 2L:Single-phase | C:Cabint |
Features:
● Use DSP+CPLD all digital control core, three-level topology technology, advanced reactive power detection algorithm and PWM control strategy to achieve dynamic and accurate compensation of reactive power.
● Adopt modular design, which facilitates parallel connection of multiple modules, takes small space and is easy to maintain.
● The structural design of independent air ducts and independent warehouses ensures the stable operation of the equipment.
● Carry out full-range dynamic compensation for inductive reactive power and capacitive reactive power, and solve the three-phase unbalance problem at the same time.
● The dynamic response speed to the load is at the millisecond level, which can achieve dynamic and accurate compensation for the reactive power of impact loads.
Applications:
Single-Phase Cabinet-Type Static Var Generators are ideal for single-phase applications requiring precise reactive power control:
● Single-Phase Power Factor Correction: Improving power factor in single-phase 220V systems, reducing electricity costs and optimising system capacity.
● Single-Phase Equipment Optimisation: Enhancing the performance and efficiency of single-phase equipment by dynamically compensating for reactive power demand.
● Residential Power Quality: Improving power quality in residential settings by mitigating voltage fluctuations and harmonics associated with reactive loads.
● Light Industrial Power Management (Single-Phase): Providing stable voltage and improved power quality for light industrial processes operating on single-phase power.
Single-Phase Cabinet-Type Static Var Generators offer a practical and effective solution for managing power quality and optimising efficiency in single-phase electrical systems.
Technical Parameters:
| 220V series | 380V series | 500V series | 690V series | |||
| Altitude | < 2000m, above 2000m, derate according to GB/T3859.2 | |||||
| Ambient temperature | -20～+50℃ | |||||
| Relative humidity | ≤90%, no condensation on the surface when the monthly minimum temperature is 25℃ | |||||
| Pollution level | Level III below | |||||
| Operating Voltage | AC220V±20% | AC380V±20% | AC500V±20% | AC690V±20% | ||
| Working frequency | 50Hz±5% | |||||
| Rated compensation capacity | 5kvar | 15/35/50/75/100kvar | 90kvar | 120kvar | ||
| Grid structure | L/N | 3P3W/3P4W | ||||
| Number of units connected in parallel | Ulimited | |||||
| Overall machine efficiency | ≥97% | |||||
| On-off frequency | 32kHz | 16kHz | 12.8kHz | 12.8kHz | ||
| Function selection | Reactive power | Reactive po wer、Reactive po wer+imbalance | ||||
| Reactive power compensation rate | ≥99% | >95% | ||||
| Full response time | <10ms | |||||
| Noise | ≤60dB | ≤60dB | ≤65dB | ≤65dB | ||
| Control method | 2-way RS485 interface (supports GPRS/WIFI) | |||||
| Protection | Overload, software/hardware overcurrent, grid overvoltage and undervoltage, power failure, overtemperature, frequency abnormality protection, etc. | Overload, software/hardware overcurrent, grid overvoltage and undervoltage, grid voltage imbalance, power failure, overtemperature, frequency abnormality, shot circuit protection, etc. | ||||

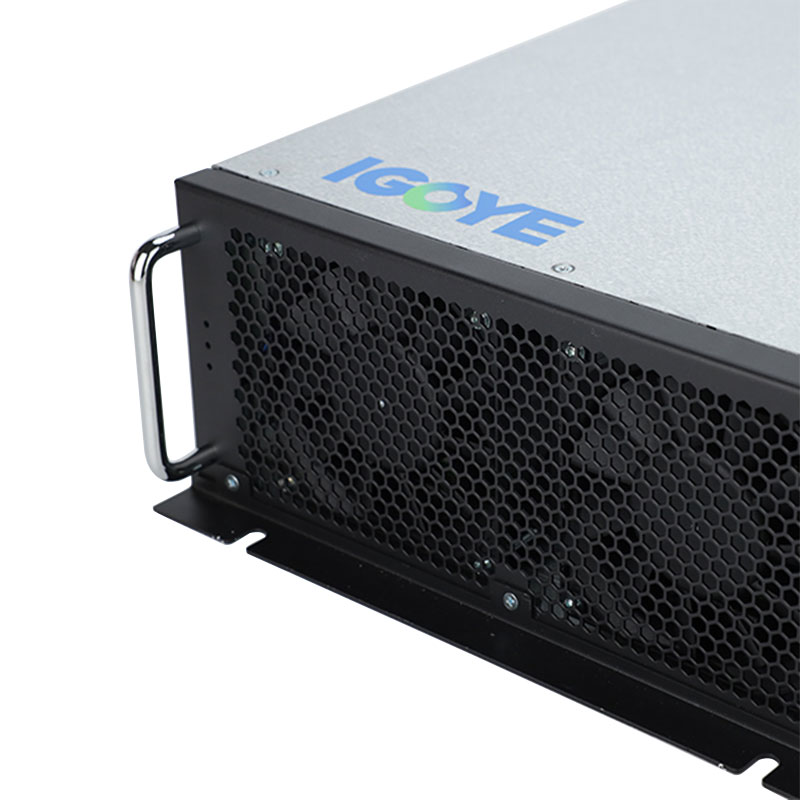

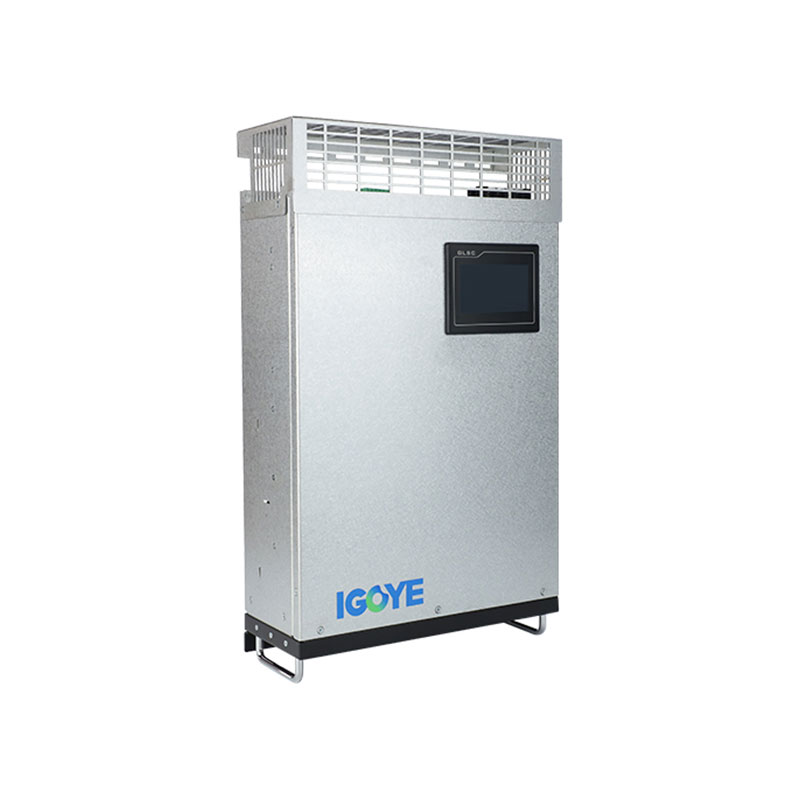

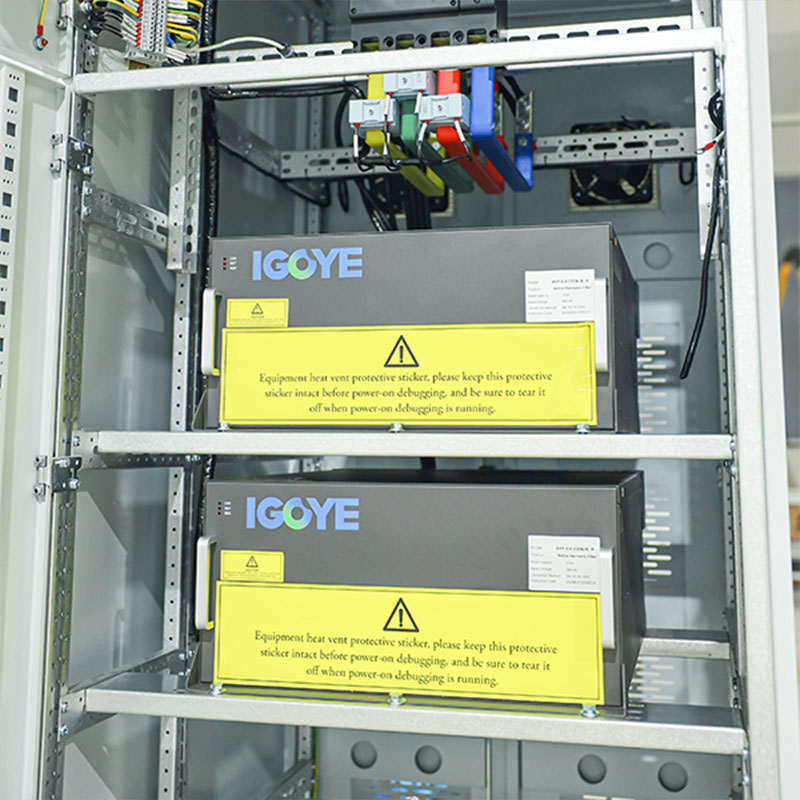

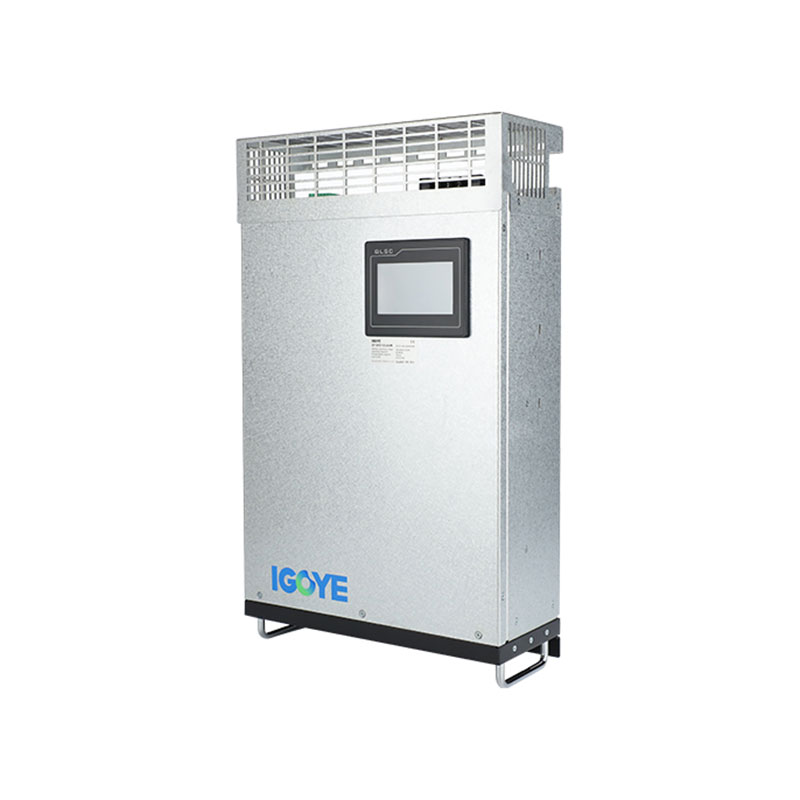

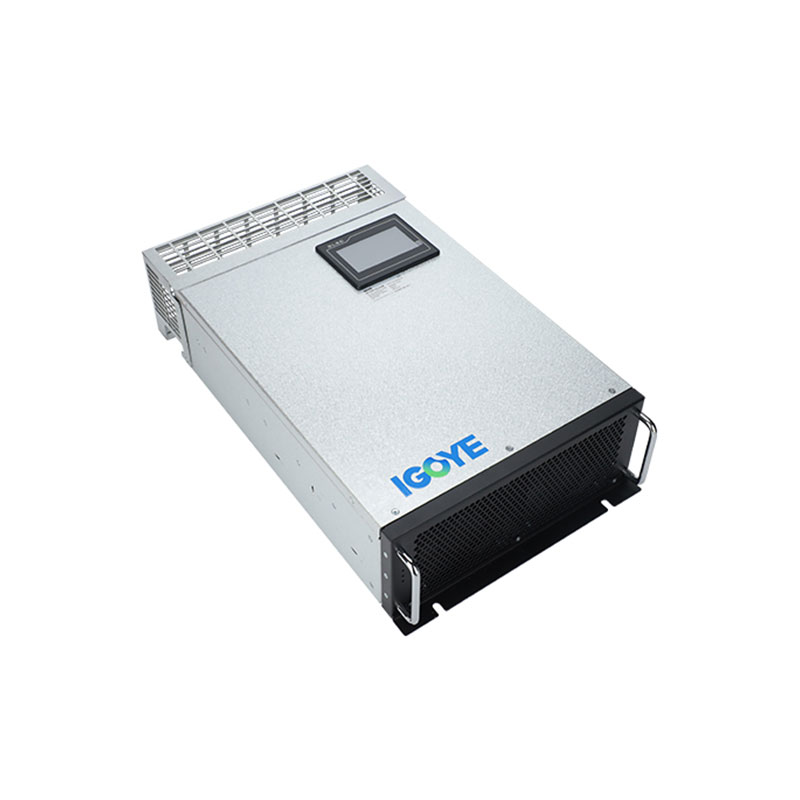

| Installation method | Rack/wall-mounted | Rack | ||||
| Incoming line | Back incoming（rack type）、 upper incoming（wall-mounted） | Back incoming line | ||||
| Protection level | IP20 | |||||
Model& Specification:
| Cabinet device model | ||||
|---|---|---|---|---|
| Model Number | Compensation capacity (kvar) | System voltage (V) | Dimensions (D*W*H) | Cooling method |
| GY SVG-0.4-200k/4L-C | 200 | 380±20% | 800*1000*2200mm | Forced air cooling |
| GY SVG-0.4-250k/4L-C | 250 | 380±20% | 800*1000*2200mm | |
| GY SVG-0.4-300k/4L-C | 300 | 380±20% | 800*1000*2200mm | |
| GY SVG-0.4-400k/4L-C | 400 | 380±20% | 800*1000*2200mm | |
| GY SVG-0.5-270k/4L-C | 270 | 500±20% | 800*1000*2200mm | |
| GY SVG-0.69-360k/4L-C | 360 | 690±20% | 800*1000*2200mm | |
